| Bunched
Optical Fiber Fan-Out Patch Cords
| |
|
Description |
|
Bunched Fiber
Optic Fan-Out Patch Cords use specially designed
splitter to split optical fiber ribbon to single channel
cable with optical connectors attached, It can be used
to connect optical fiber on ODF. Our mass production can
guarantee the products in good quality and
stability. | |
|
Features |
- Low Insertion Loss
- High Return Loss
- Good Repeatability
- Good Exchangeability
- Good Temperature Stability
| |

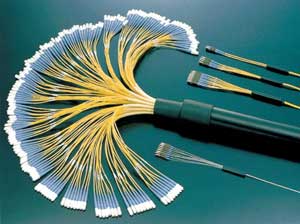

Bunched Optical Fiber
Fan-Out Patch Cords |
|
Applications |
- ODF
- Optic-fiber Communication Systems
- Computer Networks
- Optical Access Networks
- Test Equipment
| |
|
Specifications |
|
| Type |
FC/PC |
FC/UPC |
FC/APC |
SC/PC |
SC/UPC |
SC/APC |
ST/PC |
ST/UPC
|
| Insertion Loss
(dB) |
¡Ü 0.20
|
| Max. Insertion
Loss (dB) |
¡Ü 0.30
|
| Repeatability
(dB) |
¡Ü 0.10
|
| Exchangeability
(dB) |
¡Ü 0.20
|
| Return Loss (dB)
|
¡Ý 45 |
¡Ý 50 |
¡Ý 60 |
¡Ý 45 |
¡Ý 50 |
¡Ý 60 |
¡Ý 45 |
¡Ý 50 |
| Fiber Type |
Corning
SMT-28?9/125um |
| Operating
Temperature (¡ã? |
-40 ~
+80 |
-25 ~
+70 |
-40 ~
+80 |
| Storage
Temperature (¡ã? |
-40 ~
+85 |
| Industry Standard
|
Bellcore TA-NWT-001209
| | |
