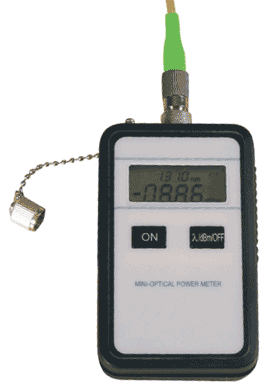

S3205 Mini - Type Power Meter
T3205
Features
  • Three 1.5V batteries can support S3205 to be in operation, at least 70 hours.
  • Calibrated wavelengths can be customized within 800~1600nm.
  • 50 dB dynamic range.
Specification
Type S3205A S3205B S3205C S3205D
Calibrated Wavelength (nm) 850/ 980/ 1310/ 1550
Detector InGaAs
Power Measurement Range (dBm) -50 ~ +0 -40 ~ +10 -30 ~ +20 -20 ~ +30
Uncertainty (dB) ?.25
Display Resolution Nonlinear: 0.01 dBm
Operating Temperature (C) -10 ~ +60
Storage Temperature (C) -25 ~ +70
Auto-off Time (min) 10
Battery operating time 70
Power Supply 1.5V battery (3)
Weight (g) 90 (W/B)
Dimensions (mm) 90 x 55 x 16
Standard Packages
  • S3205 Mini-Type Power Meter.
  • Manual.
  • 1.5V Battery (3).
  • Tampon.
