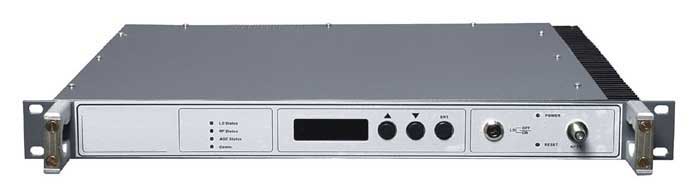

OS1550 External Modulation Optical Transmitter
OT1550 External Modulation Optical Transmitter
Summary

Main board in this transmitter afforded by U.S. E-0 Company and the transmitter passed assemble, test and aging by our company. Performance to price ratio is high and suitable for large or middle-size CATV fiber cable network.

Performance Characteristic
  • Adopt several international patents pre-distortion dealing technology to guarantee the fine non-linear index.
  • Adopt famous brand 1550 nm DFB laser instrument guarantee low noise, high power and high dependability.
  • Can initiate the mode SBS function, offer more elastic disposition.
  • Adopt Automatic Gain Control design, make different RF input level keep about equal output performance still, Simplify installing and operation sequence.
  • The built-in microprocessor offers fine control performance and state to show that is controlled.
  • RS485 controls the interface to control by carrying on the remote state.
  • 19" 1U high-standard framework type installation.
Performance parameters

Item Unit Parameter
Optical Parameter
Optical Wavelength nm 1550
RIN Noise Density dB/Hz ?-160
Output Optical Power dBm 2x7
Optical Output Port - 2
Connector Type - FC/APC, SC/APC Adjustable or Fixed
Suppression Threshold dBm 13/16/18
RF Parameter
Operating Bandwidth MHz 45 ~ 860
Channel Number Ch (45 ~ 862MHz) 84 (PAL-D)
Input Impedance Ohm 75
Input Return Loss dB 16
Input Level dBuV/Ch 75 ~ 85
OMI - 3%0.25
Flatness dB 0.75
Connector Type - F type
Link Performance
Link Performance CNR dB 52
Link Performance CSO dB 65 (Port A) 63 (Port B)
Link Performance CTB dB 65
General Response
Power Supply V 90 ~ 260, 50/60 Hz, 100W (Max.)
Operating Temperature C 0 ~ +50
Storage Temperature C -20 ~ +60
Operating Humidity % 85
Dimensions mm 350 (L) X 485 (W) X 45 (H)
Weight Kg 6

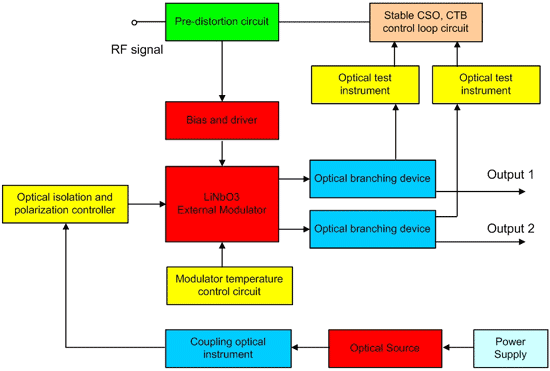

Principle Drawing
Principle Drawing
Order Direction
Please confirm when order:
  • SBS value (can design by our technique department, but you should afford engineering circuit drawing)
  • 1550nm optical transmitter general requirement is 2 output at 7~9dBm, if you have no especial require.
  • Output type is SC/APC , if you need to others, please tell us.
Accessories

1 User's Manual
