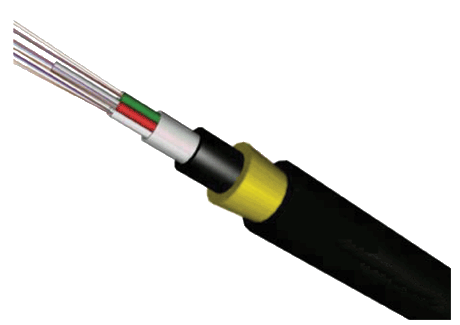

All Dielectric Self-supporting ADSS optical fiber cable
| |
|
Technical Characteristics |
- Low dispersion and attenuation
- Proper design, precise control for fiber excess
length and distinct stranding process render the cable
excellent mechanical and enviromental properties
- With good anti-electromagnetism ability
- Use high intensity aramid yarn as anti-pulling
component, strong, light and small cable diameter,
suitable for different climatic situation and
installation span
- It has special outer jacket protection, strong
anti-electro-corrosion ability
| |
|
Application |
|
Environment
with high electric field strength in the Power
communication system and the area where frequent thunder
happens | |
|

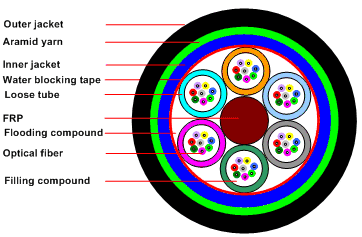

Cable structure |
|
| ADSS
| |
|
Applied Standard |
|
IEEE P1222,
ITU-T G.652, TU-T G.655, IEC 60794-1, DL/T 788- 2001,
YD/T 980-2002 | |
|
Condition of Design |
Project-1
- Fiber count
- Installation span
- Voltage grade
- Max., Min., Avg. temperature
- Max. wind speed
- Max. thickness of ice coverage
|
|
Project-2
- Fiber count
- Max. allowable tension
- Voltage grade
| | | |
