Aerial
& Conduit Ribbon GYDTS optical fiber cable
| |
|
Technical Characteristics |
- Low dispersion and attenuation
- Proper design, precise control for fiber excess
length and distinct stranding process render the cable
excellent mechanical and enviromental properties
- The armoring of corrugate steel tape make cable
have nice properties of moisture resistance and crush
resistance
- With small cable diameter, light cable weight,
easily to lay, large fiber count, ribbon connection,
save the cost of engineering
| |
|
Application |
|
Access
network, local trunk line | |
|

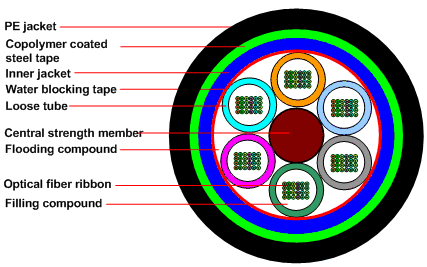

Cable structure |
|
| GYDTS | |
|
Technical indicators |
| Fiber
count |
Cable
dia. (mm) |
Cable
net weight (Kg/km) |
Min.
bending radius (mm) |
Min.
tensile strength (N) |
Min.
crush pressure (N/100mm) |
| Static
state |
Dynamic
state |
Short term
|
Long term
|
Short term
|
Long term
|
| 96 |
15.9 |
266 |
160 |
320 |
2100 |
600 |
1000 |
300 |
| 144 |
17.1 |
302 |
180 |
360 |
2400 |
600 |
1000 |
300 |
| 216 |
19.2 |
365 |
200 |
400 |
2900 |
600 |
1000 |
300 |
| 288 |
22.6 |
472 |
230 |
460 |
3000 |
600 |
1000 |
300 |
| 384 |
23.2 |
492 |
240 |
480 |
3000 |
600 |
1000 |
300 |
| Operating temperature |
-4 ~
+60C | |
| *the cable structure also can be
design according customers requirement.
| | |
