Aerial

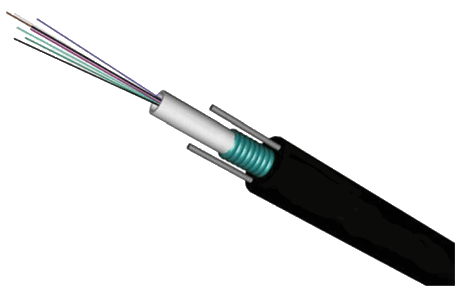

& Conduit Optical GYDXTW optical fiber cable
| |
|
Technical Characteristics |
- Low dispersion and attenuation
- Proper design, precise control for fiber excess
length and distinct stranding process render the cable
excellent mechanical and enviromental properties
- The armoring of corrugate steel tape make cable
have nice properties of moisture resistance and crush
resistance
- With small cable diameter, light cable weight,
easily to lay, large fiber count, ribbon connection,
save the cost of engineering
| |
|
Application |
|
Access
network, local trunk line | |
|

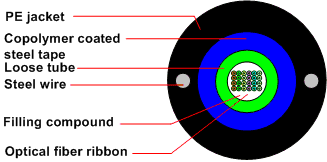

Cable structure |
|
| GYDXTW
| |
|
Technical indicators |
| Fiber
count |
Cable
dia. (mm) |
Cable
net weight (Kg/km) |
Min.
bending radius (mm) |
Min.
tensile strength (N) |
Min.
crush pressure (N/100mm) |
| Static
state |
Dynamic
state |
Short term
|
Long term
|
Short term
|
Long term
|
| 72 |
14.3 |
202 |
150 |
300 |
1600 |
600 |
1000 |
300 |
| 96 |
14.8 |
210 |
150 |
300 |
1700 |
600 |
1000 |
300 |
| 144 |
16.2 |
245 |
170 |
340 |
2000 |
600 |
1000 |
300 |
| 216 |
19.4 |
332 |
200 |
400 |
2700 |
600 |
1000 |
300 |
| 288 |
19.9 |
356 |
200 |
400 |
2800 |
600 |
1000 |
300 |
| Operating temperature |
-4 ~
+60C | |
| *The structures in the list are all
typical, the cable structure also can be design
according customers requirement.
| | |
