| Aerial
& Conduit GYXTS optical fiber cable
| |
|
Technical Characteristics
|
- Low dispersion and attenuation
- Proper design, precise control for fiber excess
length render the cable excellent mechanical and
enviromental properties
- The armoring of steel wires and corrugate steel
tepe make cable have nice properties of moisture
resistance and crush resistance
- With small cable diameter, light cable weight,
easily to lay
| |
|
Application |
|
Rural
communication, local trunk line, CATV & computer
networks system | |
|

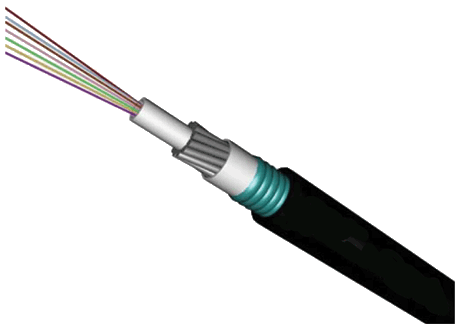

Cable structure |
|
| GYXTS | |
|
Technical indicators |
| Fiber
count |
Cable
dia. (mm) |
Cable
net weight (Kg/km) |
Min.
bending radius (mm) |
Min.
tensile strength (N) |
Min.
crush pressure (N/100mm) |
| Static
state |
Dynamic
state |
Short term
|
Long term
|
Short term
|
Long term
|
| 6 and below |
10.4 |
156 |
110 |
220 |
1500 |
600 |
1000 |
300 |
| 8~12 |
10.9 |
172 |
110 |
220 |
1500 |
600 |
1000 |
300 |
| 14~24 |
11.5 |
194 |
120 |
240 |
1500 |
600 |
1000 |
300 |
| Operating temperature |
-40 ~
+60C | |
| *the cable structure also can be
design according customers requirement.
| |
