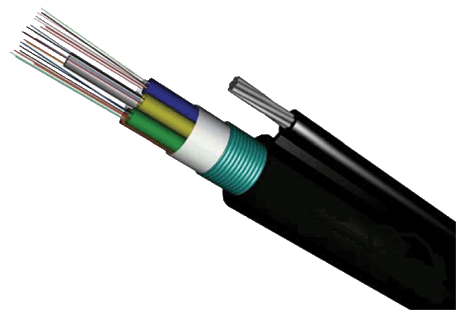

Self-supporting Aerial GYTCS optical fiber cable
| |
|
Technical Characteristics |
- Low dispersion and attenuation
- Proper design, precise control for fiber excess
length and distinct stranding process render the cable
excellent mechanical and enviromental properties
- The armoring of corrugate steel tape make cable
have nice properties of moisture resistance and crush
resistance
- With small cable diameter, light cable weight,
self-supporting
| |
|
Application |
|
Long-distance
communication, local trunk line, CATV & computer
networks system | |
|

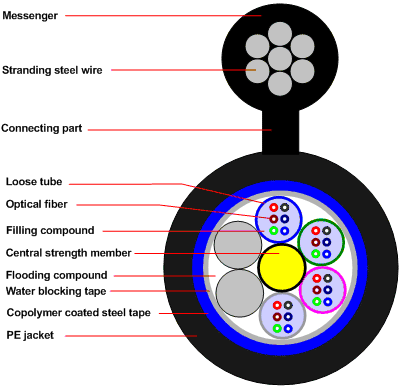

Cable structure |
|
| GYTCS
| |
|
Technical indicators |
| Fiber
count |
Cable
dia. (mm) |
Cable
net weight (Kg/km) |
Min.
bending radius (mm) |
Min.
tensile strength (N) |
Min.
crush pressure (N/100mm) |
| Static
state |
Dynamic
state |
Short term
|
Long term
|
Short term
|
Long term
|
| 36 and below |
11.6 |
144 |
120 |
240 |
3000 |
1000 |
1000 |
300 |
| 38~60 |
12.3 |
155 |
130 |
260 |
3000 |
1000 |
1000 |
300 |
| 62~72 |
13.1 |
190 |
140 |
280 |
3000 |
1000 |
1000 |
300 |
| 74~84 |
13.9 |
208 |
140 |
280 |
3000 |
1000 |
1000 |
300 |
| 86~96 |
14.7 |
228 |
150 |
300 |
3000 |
1000 |
1000 |
300 |
| 98~108 |
15.5 |
247 |
160 |
320 |
3000 |
1000 |
1000 |
300 |
| 110~120 |
16.3 |
268 |
170 |
340 |
3000 |
1000 |
1000 |
300 |
| 122~132 |
17.1 |
290 |
180 |
360 |
3000 |
1000 |
1000 |
300 |
| 134~144 |
17.9 |
313 |
180 |
360 |
3000 |
1000 |
1000 |
300 |
| Messenger |
Diameter:5.1 mm, Weight:86 kg/km
|
| Connecting part |
Dimension:3.5x2.6 mm, Weight:9
kg/km |
| Operating temperature |
-40 ~
+60C | |
| *the cable structure also can be
design according customers requirement.
| | |
