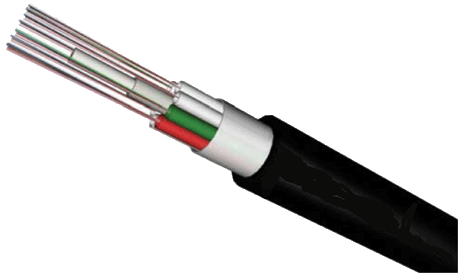

Nonmetallic GYFTY optical fiber cable
| |
|
Technical Characteristics |
- Low dispersion and attenuation
- Proper design, precise control for fiber excess
length and distinct stranding process render the cable
excellent mechanical and enviromental properties
- With good anti-electromagnetism ability
- With small cable diameter, light cable weight,
easily to lay
| |
|
Application |
|
In the
environment with strong electromagnetic interference and
the area where frequent thunder
happens | |
|

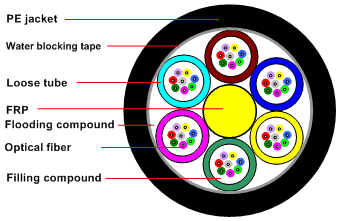

Cable structure |
|
| GYFTY | |
|
Technical indicators |
| Fiber
count |
Cable
dia. (mm) |
Cable
net weight (Kg/km) |
Min.
bending radius (mm) |
Min.
tensile strength (N) |
Min.
crush pressure (N/100mm) |
| Static
state |
Dynamic
state |
Short term
|
Long term
|
Short term
|
Long term
|
| 42 and below |
11.5 |
106 |
110 |
240 |
1500 |
600 |
1000 |
300 |
| 44~48 |
11.9 |
115 |
120 |
240 |
1500 |
600 |
1000 |
300 |
| 50~56 |
11.9 |
112 |
120 |
240 |
1500 |
600 |
1000 |
300 |
| 58~84 |
12.9 |
134 |
130 |
260 |
1500 |
600 |
1000 |
300 |
| 86~96 |
13.7 |
155 |
140 |
280 |
1500 |
600 |
1000 |
300 |
| 98~108 |
14.5 |
179 |
150 |
300 |
1500 |
600 |
1000 |
300 |
| 110~120 |
15.3 |
204 |
160 |
320 |
1600 |
600 |
1000 |
300 |
| 122~132 |
16.1 |
232 |
170 |
340 |
1800 |
600 |
1000 |
300 |
| 134~144 |
16.9 |
262 |
170 |
340 |
1900 |
600 |
1000 |
300 |
| Operating temperature |
-40 ~
+60C | |
| *the cable structure also can be
design according customers requirement.
| |
