Direct Buried & Under-water GYTA33 optical fiber cable

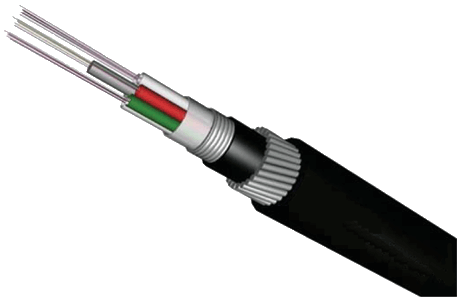

gyta33

Technical Characteristics
  • Low dispersion and attenuation
  • Proper design, precise control for fiber excess length and distinct stranding process render the cable excellent mechanical and enviromental properties
  • The armoring of steel wire and double-jacket structure make cable have excellent tensile strength and nice properties of water-proof and crush resistance
Application

Long-distance communication, local trunk line, CATV & computer networks system

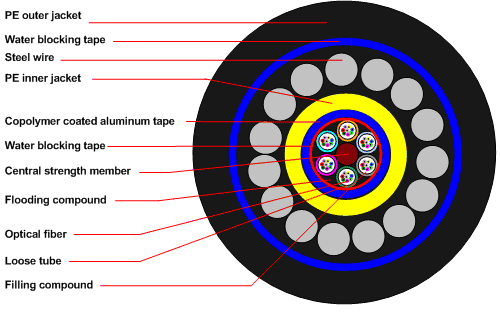

Cable structure
GYTA33
GYTA33
Technical indicators
Fiber count Cable dia. (mm) Cable net weight (Kg/km) Min. bending radius (mm) Min. tensile strength (N) Min. crush pressure (N/100mm)
Static state Dynamic state Short term Long term Short term Long term
30 & below 15.9 371 160 320 3000 1000 3000 1000
32~36 16.5 406 170 340 3000 1000 3000 1000
38~60 17.2 431 180 360 3000 1000 3000 1000
62~72 18.2 515 190 380 3000 1000 3000 1000
74~84 19.2 581 200 400 3000 1000 3000 1000
86~96 20.2 648 210 420 3000 1000 3000 1000
98~108 21.0 691 210 420 3000 1000 3000 1000
110~120 22.0 777 220 440 3000 1000 3000 1000
122~132 23.0 855 230 460 3000 1000 3000 1000
134~144 24.0 934 240 480 3000 1000 3000 1000
Operating temperature -40 ~ +60C
*the cable structure also can be design according customers requirement.
