1310/1550nm Add/Drop WDMs
Description

The 1310/1550nm high isolation add/drop WDMs are used for dropping/adding one optical wavelength from/onto the mixed/single optical signals wavelength (1310m and 1550nm). During this process, the other optical signal (1310nm or 1550nm) can pass through without being affected. In this way, transport two wavelength signals in one fiber being realized. 1310/1550nm High Isolation Add/ Drop WDMs feature high wavelength isolation, good directivity, were widely used for upgrading optical networks, enlarging optical networks capacity, and introducing new services.

Features
  • Low Insertion Loss
  • High Isolation
  • Low PDL
  • Good Directivity
  • Good Environmental Stability

Applications
  • Optic-fiber communication Systems
  • Optic-fiber CATV
  • Optical Access Networks
Setup

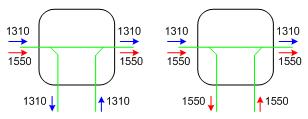

Setup of 1310/1550nm Add/Drop WDMs
Specifications

Type High Isolation Add/Drop
Operating Wavelength (nm) 1310/1550
Bandwidth (nm) ?0
Max Insertion Loss(dB) <1.0
Min Wavelength Isolation (dB) >40
Min Directivity (dB) >55
PDL (dB) ¡Ü 0.15
Operating Temperature (¡ã? -25 ~ +70
Storage Temperature (¡ã? -40 ~ +85
Max bearing power (mw) 300
Max. Tensile Strength (N) 5
Package Dimensions (mm) 140 x 114 x 20
Industry Standard Bellcore TA-NWT-001209
