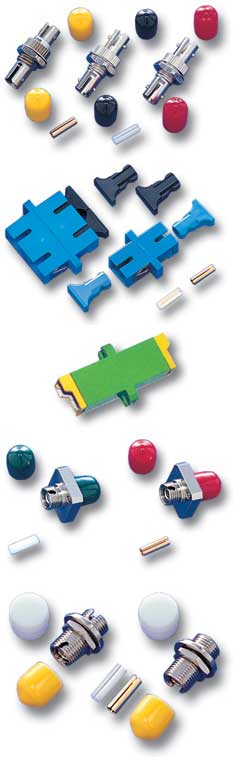

Standard Adapters
Description

Adapter is used to connect two lengths of optical fiber with different connectors. There are three types of adapters: FC, SC and ST. Our adapters are widely used in ODF, optic-fiber communications equipment, instruments etc. Their high performances were turned out to be stable and reliable.

Features
  • Accurate Dimensions
  • Good Exchangeability
  • Good Repeatability
  • Good Wear Resistance
  • Good Temperature Performance
Standard Adapters
Standard Adapters
Applications
  • Optic-fiber Communication Systems
  • Optic Equipment
  • Optic-fiber Sensors
  • Optic-fiber CATV
Specifications

Type FC/PC FC/APC SC/PC SC/APC ST
Insertion Loss (dB) 0.20
Repeatability (dB) 0.10
Exchangeability (dB) 0.20
Sleeve Material Zirconia or bronze sleeve
Operating Temperature (? -40 ~ +80 -25 ~ +70 -40 ~ +80
Storage Temperature (? -40 ~ +85
Industry Standard Bellcore TA-NWT-001209
