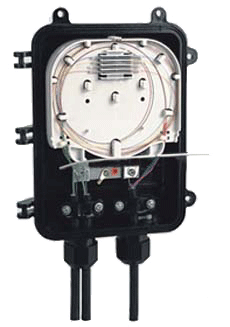

GPJ-M FTTH Fiber Optic Splice Closure (FOSC)


Arc GPJ-M is a vertical type. GPJ-M is the smallest one. 5 pieces of stainless bolts are used to seal FOSC cover and bottom while sealing fiber cable is achieved by tightening 2 pieces of plastic nuts.The FOSC is suitable for protecting splices of 2-4 pieces of fiber cables with max. diameter 14 instraight-through and branching applications. It can be placed in aerial, wall-mounting applications. The closure is spacious enough for winding and storing fibers; Fiber optic splice trays are designed in SLIDE-IN-LOCK and its opening angle is above 90 ^(o).The curved diameter meets with international standard. Therefore it is easy and convenient for installation, maintenance and reuse. Based on an advanced formula, the plastic parts are made of injection-molded, high-strength engineering plastic PC by numerical control equipment, therefore effectively prevent products from aging caused by coldness, heat, oxygen and ultraviolet radiation. The strong housing and main components provide fire resistant, waterproof, and quakeproof while protecting splices during pulling, torsioning and impacting. It ensures long-term reliability and usage under ambient temperature from -40C to +65C



GPJ-M consists of one set of elastic integrated seal fitting, our company patent product, which, based on an advanced formula, is made of injection-molded, high quality elastic sealing material by numerical control equipment. It is installed between FOSCcover and bottom. Under ambient temperature from 40C to +65C, it can be shrinking and dilating to ensure long-term sealing performance of FOSC. It also ensures good re-sealing performance after closing and reentry for many times. Elastic integrated seal fitting is a new breed in China and advanced internationally.





Tray022(L*W:140mm*133mm)
The capacity of bunchy FOST 022 is from 6 to 12 cores.
(Note: each ribbon fiber has multi-cores after fusion splicing)
