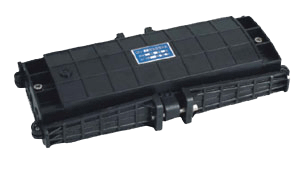

|GPJ-A Fiber Optic Splice Closure (FOSC) |
Up-down bisection GPJ-A is an arc, horizontal type. Innovative
insert plates and fixing bolts are used to fix and seal FOSC, and its
installation is quite simple. The FOSC is suitable for protecting fiber
cable splices in straight-through and branching applications. It can be
placed in aerial, underground, wall-mounting and wall-mounting in
handhole and duct applications. Based on an advanced formula, the
plastic parts are made of injection-molded, high-strength engineering
plastic PC by numerical control equipment, therefore effectively
prevent products from aging caused by coldness, heat, oxygen and
ultraviolet radiation. The strong housing and main components provide
fire resistant, waterproof, and quakeproof while protecting splices
during pulling, torsioning and impacting. It ensures long-term
reliability and usage under ambient temperature
Advanced internal structure design
The GPJ-A has the following outstanding features.
Easy and fast to fix fiber cable
Easy to re-enter,it never requires re-entry kits
The closure is spacious enough for winding and storing fibers
Fiber Optic Splice Tray (FOSTs) are designed in SLIDE-IN-LOCK and its opening angle is above 90 o
The curved diameter meets with international standard.
Easy and fast to increase and reduce FOSTs.
Innovative elastic integrated seal fitting
of the above features make it easy and convenient for installation,
maintenance and reuse. If required, the earthing deriving device can be
installed on the housing of FOSC for deriving metallic parts of
fiber cable for earthing connectinon.
GPJ-A consists of one set of elastic integrated seal fitting, our
company patent product, which, based on an advanced formula, is made of
injection-molded, high quality elastic sealing material by numerical
control equipment. It is installed between FOSC housing and insert
plates. Under ambient temperature from -40C to +65Cit
can be shrinking and dilating to ensure long-term sealing performance
of FOSC. It also ensures good re-sealing performance after closing and
reentry for many times. Elastic integrated seal fitting is a new breed
in China and advanced internationally.
Sealing is achieved by using 4 pieces of innovative insert plates
and bolts, therefore easy for installation. The most strongpoint is
that the insert plates and the housing are made of injection-molded,
high-strength engineering plastic PC by numerical control equipment;
They, together with elastic integrated seal fitting, can be shrinking
and dilating at the same rate under violent changes of ambient
temperature, therefore the closure ensures long-term reliability and
The capacity of bunchy FOST 016 is from 6 to 16 cores.
The capacity of bunchy FOST 024 is from 12 to 24 cores.
Quantity of bunchy FOSTs and heat shrinkable protective sleeves are to be determined according to the total capacity of FOSC.
(Note: each bunchy fiber has one core after fusion splicing, which needs one piece of bunchy heat shrinkable protective sleeve
Ribbon FOST 017 can accommodate 4 pieces of ribbon heat shrinkable protective sleeves.
(Note: each ribbon fiber has multi-cores after fusion splicing.)
