  Catalogue -> Optical accessories -> Multi-mode Patch Cords
Multi-mode Patch Cords
Description

Optical Fiber Patch Cords (Jumpers) is a length of optical fiber with two ends adding connectors to connect beam path. Pigtail is a length of fiber permanently attached connector only at one-end.multi mode optical fiber connectors assembled with various types of connectors (such as FC, SC, ST, etc.) There are three kinds of polished fiber end-face: PC, UPC and APC, connecting with different connectors at two ends. We employ advanced technique and equipment to ensure the qualification of mass production.

Features
  • Low Insertion Loss
  • Good Repeatity
  • Good Exchangeability
  • High Temperature Stability

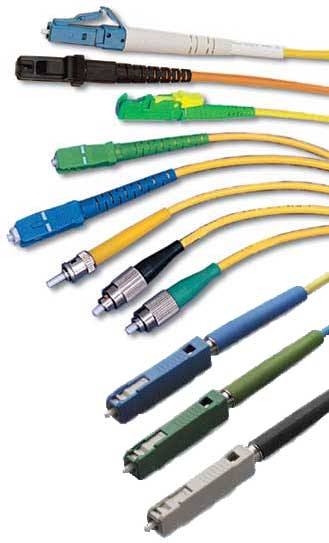

Multi-mode Patch Cords
Multi-mode Patch Cords
Applications
  • Optical Fiber Communication Systems
  • Optic-fiber Data Communications
  • Optic-fiber Access Networks
  • Optic-fiber CATV
  • LAN
  • Optic-fiber Sensors
Specifications

Type FC/PC SC/PC ST/PC
Insertion Loss(dB) 0.20
Maximum Insertion Loss(dB) 0.30
Repeatability(dB) 0.10
Exchangeability (dB) 0.20
Operating Temperature (? -40 ~ +80 -25 ~ +70 -40 ~ +80
Storage Temperature (? -40 ~ +85
Fiber Numbers Single or double
Fiber Type Corning 62.5/125um or 50/125um
Industry Standard Bellcore TA-NWT-001209
